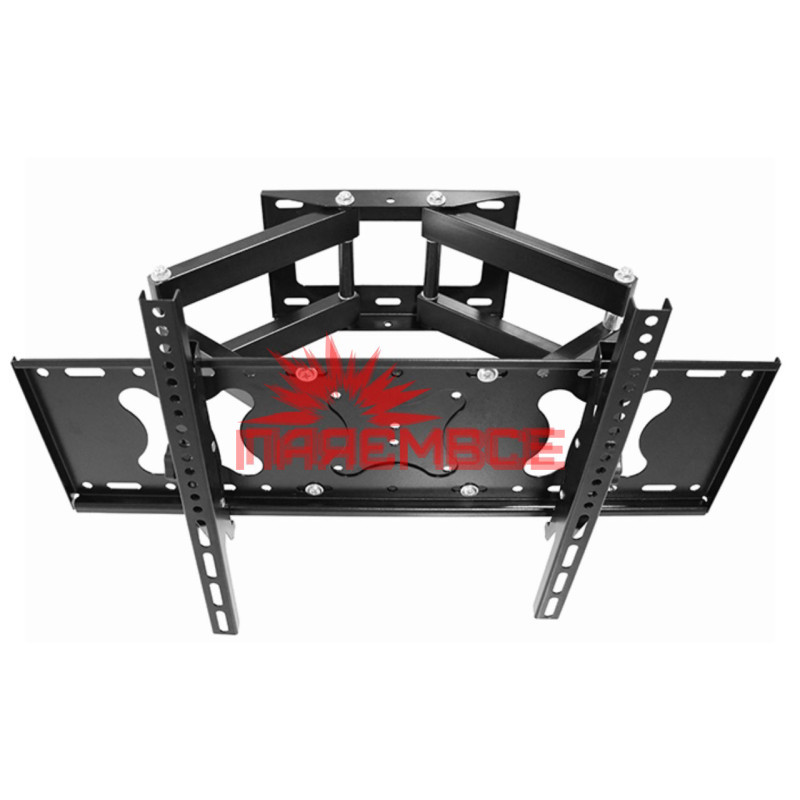

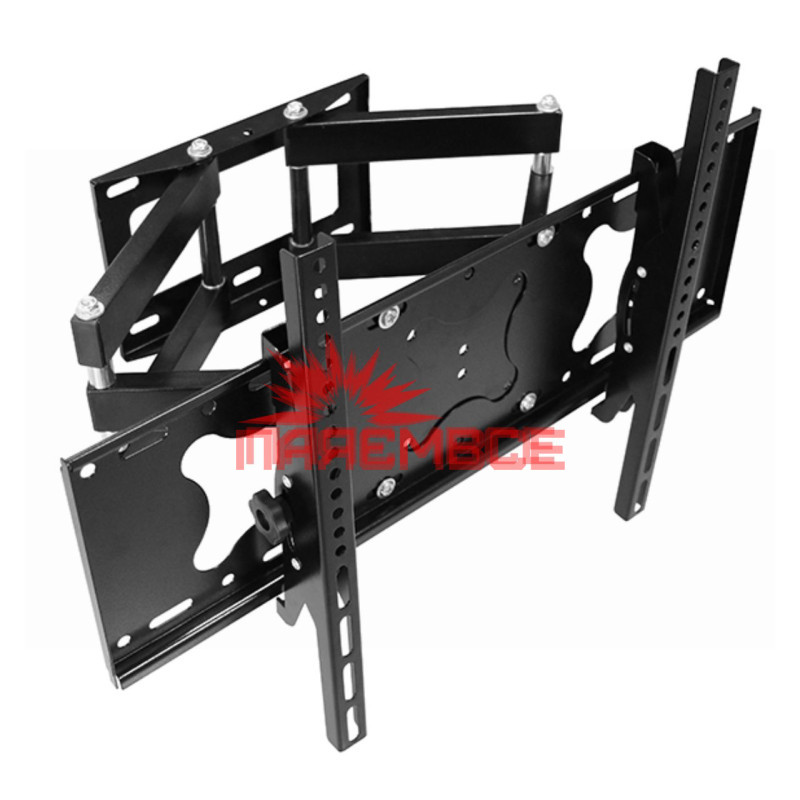

Fastening (bracket) V-STAR 5070 (CP502) 32"-70" for television, monitor TV LED LCD OLED PLASMA wall inclined-rotary adjustable VESA 50x50~600x400 mm 50 kg
- Brand:
- CodeV-STAR-5070-CP502
- 999
- Brand:V-STAR
- Producing country:China
- State:New
- Quality:High quality
- Guarantee:1 Year
- Show all attributes
| Basic | |
| Brand | V-STAR |
| Producing country | China |
| State | New |
| Quality | High quality |
| Guarantee | 1 Year |
| Technical characteristics | |
| Category | Wall mounts (brackets) |
| Code | V-STAR-5070-CP502 |
| Mount (bracket ) | V-STAR 5070 (CP502) |
| Brand | V-STAR |
| Model | 5070 (CP502) |
| Type | Wall |
| Kind | Inclined-rotary, adjustable |
| Form | Rectangular |
| Appointment | For television, monitor and other displays (TV, LED, LCD, OLED, PLASMA) |
| Diagonal of screen | 32"-70" (81.28 cm-177.80 cm) - 32", 33", 34", 35", 36", 37", 38", 38.5", 39", 39.5", 40", 40.5", 41", 42", 43", 44", 45", 46", 47", 47.6", 48", 48.4", 49", 50", 51", 52", 53", 54", 54.6", 55", 56", 57", 58", 59", 60", 61", 62", 63", 64", 64.5", 65", 66", 67", 68", 69", 70" |
| VESA min | 50x50 mm |
| VESA max | 600x400 mm |
| VESA | 50x50~600x400 mm: 50x50 mm, 55x55 mm, 75x75 mm, 75x100 mm, 75x200 mm, 100x75 mm, 100x100 mm, 100x200 mm, 100x300 mm, 100x400 mm, 150x100 mm, 150x150 mm, 200x50 mm, 200x75 mm, 200x100 mm, 200x150 mm, 200x200 mm, 200x300 mm, 200x400 mm, 300x100 mm, 300x200 mm, 300x300 mm, 300x400 mm, 400x100 mm, 400x200 mm, 400x300 mm, 400x400 mm, 500x100 mm, 500x200 mm, 500x300 mm, 500x350 mm, 500x400 mm, 600x100 mm, 600x200 mm, 600x300 mm, 600x400 mm and all intermediate (for example: horizontally 550 mm and vertically 350 mm) |
| Maximal loading | 50 kg |
| Tilt angle | +15°~-15° |
| Angle of rotation | 180° |
| Angle of alignment | No |
| Distance is from a wall | 70-500 mm (7-50 cm) |
| Amount of degrees of freedom | 5 |
| Sizes of a wall plate | **x** cm (***x*** mm) |
| Editing of a wall plate | * cm (*-** cm) |
| Material | Steel |
| Coating | Powder |
| Color | Black |
| Special functions | RK |
| Level | Yes (built-in) |
| Mounting accessories | Yes (there is everything you need for installation) |
| Weight (net) | *.* kg |
| Sending | |
| Parcel | Box |
| Weight (gross) | *.** kg |
| Sizes (gross) (l/h/w) | ** cm/** cm/* cm |
